1000m Lavitra 808nm infrared Laser Illuminator Module
MODELY | SG - IR808 - 1K |
| Elanelana mahomby | ≥1000m |
| Mode | AMALONA (Edge Emitting laser) |
| halavan'ny onjam | 808 ± 10NM (940nm, 980nm ho an'ny safidy) |
| Hery input | ≤32w |
| Laser Chip Power | 10w |
| Foibe maivana | 7 ~ 8w |
| Laser Beam Angle | Lavitra Angle 0,8 °, elanelana mahomby> 1000m, beam spot diameter <φ28m |
| Akaikin'ny Angle 30 °, elanelana mahomby> 80m | |
| Fomba fanaraha-maso | Uart_ttl, rs - 485, manual |
| Interface fifandraisana | Rs - 485, TTL232, fanaraha-maso ny manual |
| Protocol serasera | Pelco - D (9600bps default, 4800bps, 2400bps amin'ny safidy) |
| Modely miasa | NITOHY |
| Fiainana fanompoana | > 30000h |
| Hery input | DC12V ± 10%, 2.1a ± 0.2a |
| Mari-pana amin'ny fandidiana | - 35 ° C ~ + 55 ° C |
| Ny hafanana fitahirizana | - 50 ° C ~ + 100 ° C |

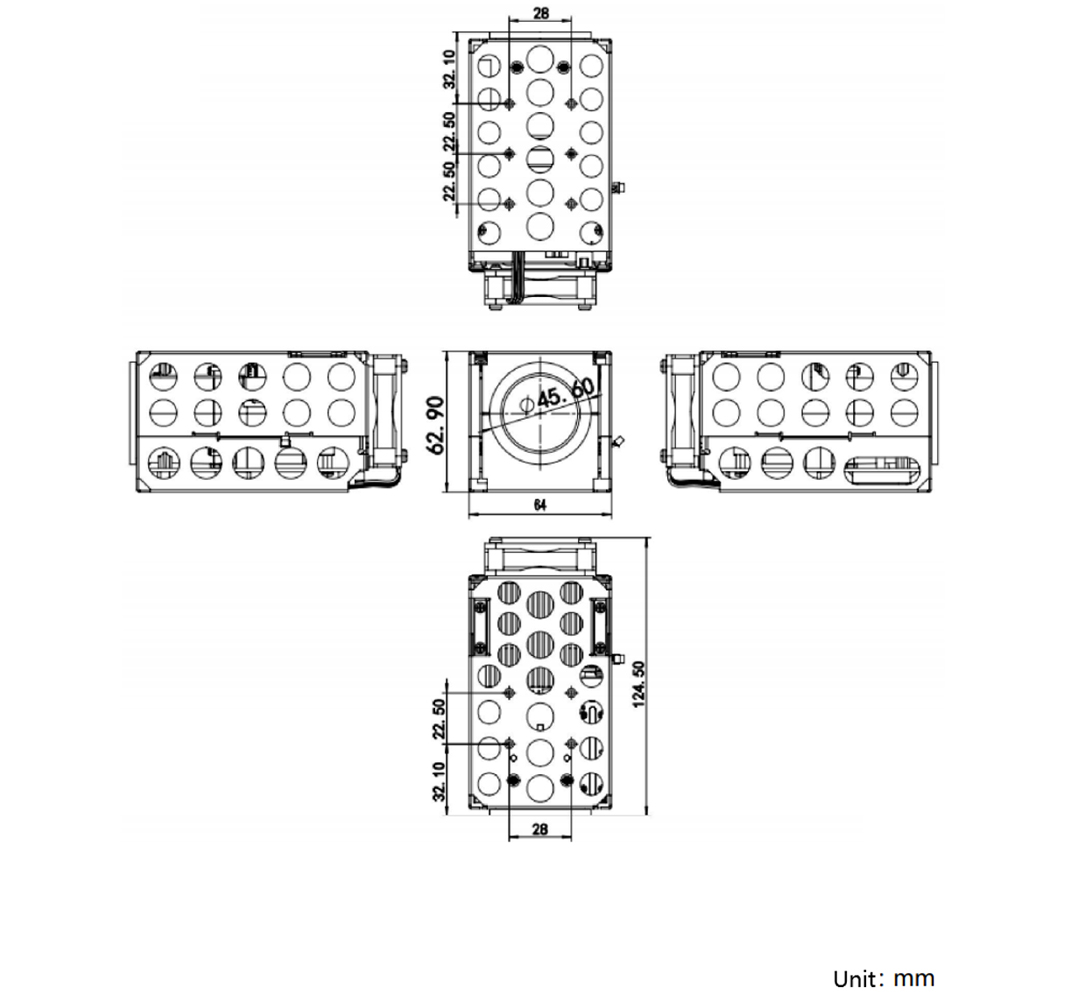

| lafiny | 125mmx6633mmx64mm |
| Lanja | 400g |
