12μm 640 × 512 USB (CVBS / Type - C / Mipi Optional Sick) Size Temple Fandresena Thermal

Laharana modely

SG - dtm06u (c, m) 2 - x

SG - dtm06u (c, m) 2 - tx

SG - dtm03u (c, m) 2 - x

SG - dtm03u (c, m) 2 - tx

SG - dtm02u (c) 2 - x

SG - dtm02u (c) 2 - TX

Module thermal

Sary sensor

Vox Microbolometer Vox

Elanelana piksel

12μm

Valinteny henjana

8μm hatramin'ny 14μm

Max. vahaolana

640 × 512

384 × 228

256 × 192

Tranombakoka (FPS)

50

25

50

25

50

25

Lens (halavany)

9.1 / 13/19 / 25mm

9.1 / 13mm

4/2 7 / 10mm

F isa

F1.0 / F1.0 / F1.1 / F1.2

F1.0

F1.0

Fomba fijery (h v)

45.9 ° × 36.9 ° / 32.9 ° × 26.6 ° /

22,6 ° × 18.2 ° / 17.3 ° × 13.8 °

28.7 ° × 21.7 ° / 20.1 ° × 15.1 °

46.8 ° × 34.1 ° / 24.6 ° × 18.5 ° / 16.9 ° ×.8 °

Temper Fepetra

N / A

MANAMPY

N / A

MANAMPY

N / A

MANAMPY

Fandrefesana ny mari-pana

Sehatra Suhu

Lt Mode: - 20 ° C ~ + 150 ° C; HT Mode: 0 ° C ~ + 550 ° C

Fahadisoana fandrefesana

Max (± 2 ° C, ± 2%); Fandroahana temp: - 20 ° C ~ + 50 ° C

Saripika sary

Fanitsiana sary

Famirapiratra, mifanohitra, maranitra

Fampivoarana an-tsipiriany

MANAMPY

tombony

Auto / Manual

Ny fampihenana ny tabataba

2d / 3d

Atsimbadiho

MANAMPY

Fitaratra

MANAMPY

Pseudo - loko

Ny palitao 18 loko azo zahana

Crosshair

Aseho / hanjavona / manafina

Fanodinana sary

NUC fanitsiana, sivana ny feo nomerika, DDE

Video

Famokarana horonantsary

UVC / BT.656 / MIPI / LVDS / CVBS

UVC / CVBS

Fanitarana Interformation

USB / MIPI / CVBS / Type - C

USB / CVBS / Type - C

Serial serasera

Seranan-dahatsoratra

General

fahefana

DC 4.5 ~ 5.5v; CVBS: DC 4.5-20V

Fisarotam-pahefana

≤0.7w@25)

≤0.7w@25)

≤0.55w@25)

Ny mari-pana miasa

- 40 ° C ~ 70 ° C

Ny hafanana fitahirizana

- 40 ° C ~ 80 ° C

Humidity miasa

≤95% rh (Non - Condensing)

dona

6.06G Random, 3 - Axis, sine onjam-peo

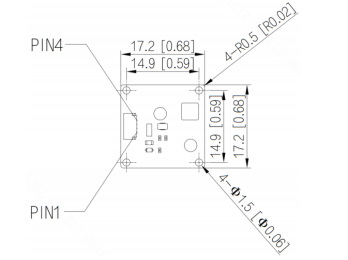

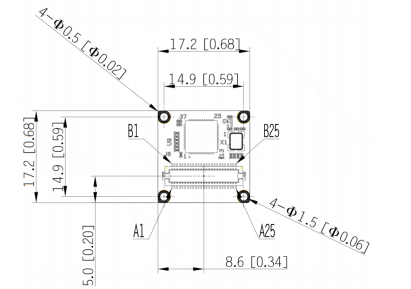

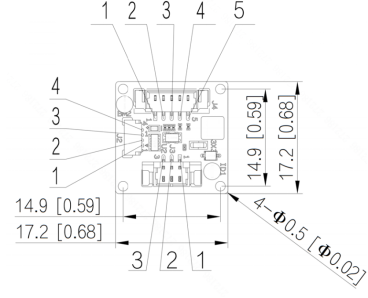

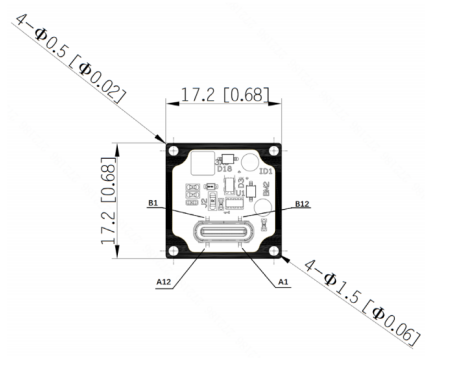

lafiny

17,3mmm * 17,3mm * 10.8mm (tsy misy lens spacer peratra rambony)

Lanja

5G (raha tsy misy lelan-dry lefona rambony)
