1280x1024 / 640x512 Network sy Digital Dual Output Camera Module
famaritana
MODELY | SG - Swz12nd2 - 17510 | SG - SWZ06ND2 - 17510 | |
Sensor | Sary sensor | 1/2 "Sony Ingaas Global Shutter Sensor IMX990 | 1/4 "Sony Ingaas Global Shutter Sensor IMX991 |
| Piksel mahomby | Eo ho eo. 1.34MP | Eo ho eo. 0.34Mp | |
| Ny haben'ny piksel | 5μm | ||
family | Valintenin'ny valisoa | 1000 ~ 1700nm | |
| ICR | Manohana ny fomba 2: tarika malalaka: 1000 ~ 1700nmnRow Band: 1450 ~ 1700nm | ||
| Halavany | 17mm ~ 510mm, 30x optical zoom | ||
| nisara- | F2.8 ~ f5.5 | ||
| Fieritreretana | H: 21.3 ° ~ 0.71 °, V: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, V: 9.3 ° ~ 0.3 ° ~ 0.3 °, D: 14.8 ° ~ 0.47 ° | |
| Manakatona ny halaviran'ny fifantohana | 1m ~ 10m (malalaka ~ tele) | ||
| Speed Speed | Eo ho eo. 7s (optika midadasika ~ tele) | ||
Video | famatrarana | H.265 / H.264 / H.264h / MJPEG | |
| vahaolana | 25/30/30 / 60FPS @ 1280 × 1024 | 25/30/30 / 60FPS @ 640 × 512 | |
| Tahan'ny horonan-tsary | 32kbps ~ 16Mbps | ||
| teny | AAC / MP2L2 | ||
| LVD LVDS | 25/30/30 / 60FPS @ 2MP (1920 × 1080) | ||
Network | Fitahirizana | TF Card (256 GB), ftp, NAS | |
| Protocol Network | ONVIF, HTTP, https, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | MANAMPY | ||
| Fanavaozana firmware (LVDS) | Afaka manavao ny firmware amin'ny alàlan'ny seranan-tsambo | ||
| Hetsika ankapobeny | Motion, Tamper, karatra SD, Network | ||
| Ivs | Fitsangatsanganana, fiampitana fefy, fidirana, tsy fanelingelenana, haingam-pandeha, haingana - mifindra, fitetezana fijanonana, vahoaka manangona vinavina, tsy hita, zavatra tsy hita, zavatra tsy hita, zavatra tsy hita. | ||
| Ny fampihenana ny tabataba | 2d / 3d | ||
| Modely fampivoarana | Manual, Auto, laharam-pahamehana, laharam-pahamehana, ho laharam-pahamehana | ||
| Fanonerana ny fanitarana | MANAMPY | ||
| Speed Speed | 1/15 ~ 1 / 30000s | ||
| Modely mifantoka | Auto / Manual / Semi Auto | ||
| Electronic Defog | MANAMPY | ||
| Ny fihenan'ny setroka mafana | MANAMPY | ||
| Atsimbadiho | MANAMPY | ||
| EIS | MANAMPY | ||
| Digital Zoom | 16x | ||
| Fifehezana ivelany | TTL | ||
| interface tsara | 4mpanin'ny seranan-tsambo Ethernet, serial & herinaratra sy herinaratra, 5PIN Audio Port.30Pin LVDS | ||
| Protocol serasera | Sony visca, plecec d / p | ||
| Toe-javatra miasa | - 30 ~ + 60 ° C / 20% ~ 80% rh | ||
| Toerana fitahirizana | - 40 ~ + 70 ° C / 20% ~ 95% rh | ||
| Herin'aratra | DC 12V | ||
| Ny fanjifana herinaratra (TBD) | Avg: 6w; Max: 11w | ||

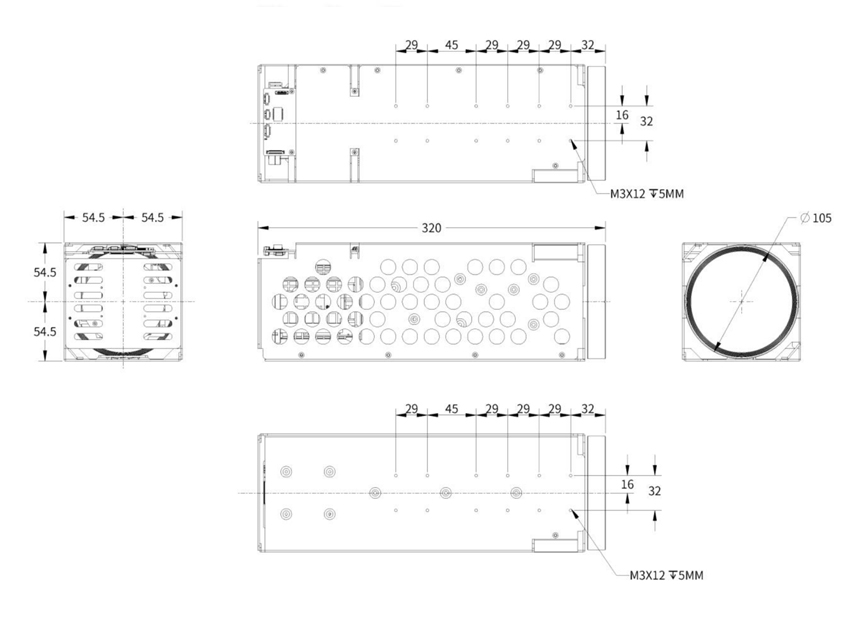

| Dimysions (l * w * h) | Eo ho eo. 320mm * 109mm * 109mm | ||
| Lanja | 3.1kg | ||
Network Interface
| Type | Laharana PIN | Anarana PIN | Description |
| J2_4pin Ethernet interface tsara | 1 | Ethrx - | Seranan-tsarimihetsika Ethernet, Internet RX - |
| 2 | Ethrx + | Seranan-tsambo Eternetive Ethernetive, Internet Rx + | |
| 3 | Ethtx - | Mpanampy Eternet Port, Internet TX - | |
| 4 | Ethtx + | Seranan-tsambo Ethernet, Internet TX + | |
| J3_6PIN POWER & UART INTERFICA | 1 | Dc_in | DC12V |
| 2 | Gnd | Gnd | |
| 3 | Rxd1 | TTL Level 3.3v, protocol pelco | |
| 4 | TXD1 | TTL Level 3.3v, protocol pelco | |
| 5 | Rxd0 | TTL Level 3.3v, visca protocol | |
| 6 | TXD0 | TTL Level 3.3v, visca protocol | |
| J1_5pin Audio interface tsara | 1 | Audio_out | Audio Out (andalana) |
| 2 | Gnd | Gnd | |
| 3 | Audio_in | Audio ao (andalana) | |
| 4 | Gnd | Gnd | |
| 5 | NC | NC |
LVDS interface tsara
| Port | isa | Anarana PIN | Description |
| J4_30PIN LVDS interface (Mitovy amin'ny Sony 30pin interface nomerika) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | Gnd | Gnd | |
| 10 | Gnd | ||
| 11 | Gnd | ||
| 12 | Gnd | ||
| 13 | DC | DC Output (DC + 7V ~ + 12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | Uart1_tx | TTL Level 3.3v, protocol visca, mitovy amin'ny TXD0 ao amin'ny Port J3_6PIN. Nefa tsy afaka mifandray amin'ny fotoana mitovy. | |
| 19 | Uart1_rx | TTL Level 3.3V, Protocol visca, mitovy amin'ny RXD0 amin'ny Port J3_6PIN. Nefa tsy afaka mifandray amin'ny fotoana mitovy. | |
| 20 | Gnd | Gnd | |
| 21 | TXOUT0 - | ||
| 22 | Txout0 + | ||
| 23 | TXOUT1 - | ||
| 24 | Txout1 + | ||
| 25 | TXOUT2 - | ||
| 26 | Txout2 + | ||
| 27 | TXOUTCLK - | ||
| 28 | Txoutclk + | ||
| 29 | TXOUT3 - | ||
| 30 | TXOUT3 + |
