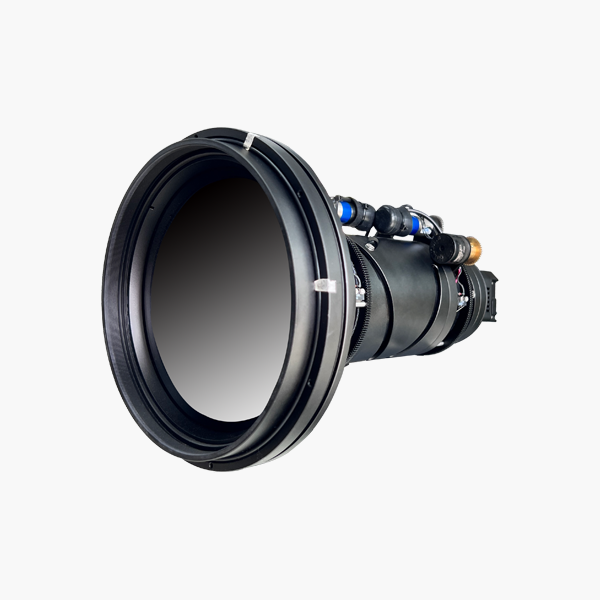

1280x1024 Formal Formal Network Module miaraka amin'ny lelan-doko 25 ~ 225mm (30 ~ 150mm)

MODELY

SG - TCM12N2 -M25225

SG - TCM12N2 -M30150

Sensor

Sary sensor

Vox Microbolometer Vox

vahaolana

1280 1024

Tranomboka

50hz

Pixel Pitch

12μm

Spectral Range

8 ~ 14μm

Hard

≤35mk @ 25 ° C, F # 1.0

family

Coating

DLC

Halavany

25 ~ 225mm

30 ~ 150mm

Karazana lens

maotera

maotera

Optical zoom

9x

5x

Digital Zoom

8x

8x

F Sarobidy

F1.0 ~ f1.5

F1.0 ~ f1.2

Fov

34.15 ° × 27.61 ° ~ 3.91 ° ​​× 3.13 °

28:302 ° × 23.15 ° ~ 5.86 ° × 4.69 °

Video

famatrarana

H.265 / H.264 / H.264H / H.264B / MJPEG

Fandraisana audio

AAC / MP2L2

Snapshot

Jpeg

vahaolana

Renirano Mainty: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480)
Sub - stream1 / 2: 50fps @ (704 × 576, 704 × 480, 352 × 288, 352 × 240)

Tahan'ny horonan-tsary

4kbps ~ 40Mbps

Network

Protocol Network

IPv4, IPv6, HTTPS, HTCPS, UDP, RTP, RTP, RTP, RTP, FTP, DHCP, Ppoe, DNS, DDN, ICMN, ICMP, SNMP, ICOS, 802.1X, BONJOUR

API

ONVIF, API API, SDK, GB28181

Security Network

Fanamarinana ny mpampiasa, ic / sivana IP, HTTPS encryption, ieeE 802.1x

Web browser

Ie, sisiny, firefox, chrome

Mpikambana

Hatramin'ny 20 mpampiasa, 2 ambaratonga: Administrator, mpampiasa

Fitahirizana

Micro SD / SDHC / SDXC Card (hatramin'ny 1TB) Fivarotana sisiny, FTP, NAS

Multicast

MANAMPY

fahiratan-tsaina

Fiarovana perimeter

Fitsangatsanganana, Fitrandrahana Fence Fence, Intrusion

Famakafakana fitondran-tena

Fanesorana, fanesorana zavatra, haingana - Mifindra, mifindra, fitetezana vahoaka, fanararaotana, fanararaotana

ZAVA-NITRANGA

Fikarohana Motion, fanodinana horonantsary, fanovana sary, fitetezana audio, tapaka ny tamba-jotra, IP fifandirana, fidirana tsy ara-dalàna, fitehirizana tsy ara-dalàna

Fikarohana afo

MANAMPY

interface tsara

Eternet

Open book 01.svg Bika matoanteny

Fanairana ao / mivoaka

1/1

Audio in / out

1/1

Mifehy ny interface tsara

1x ttl 3.3v (visca protocol),

1x rs485 (pelco protocol) (TTL 3.3V)

Famokarana horonantsary

Network

Loko Pseudo

Mafana mafana, mafana mafana, fusion, vy mena, sns 20 safidy

Modely mifantoka

Auto / Manual / Iray Push AF

FFC Mode

Auto / Manual

Fametrahana sary

Famirapiratra, mifanohitra, maranitra ary fihenan'ny tabataba ara-nofo

EIS

MANAMPY

OSD

MANAMPY

Atsimbadiho

MANAMPY

Fitaratra

MANAMPY

Herin'aratra

DC 12V, 1a

Ny fanjifana herinaratra mahazatra

3.8w

Ny fanjifana herinaratra peak

7.5w

7.3w

Toe-javatra miasa

- 30 ° C ~ + 60 ° C / 20% hatramin'ny 80% rh

Toerana fitahirizana

- 40 ° C ~ + 70 ° C / 20% ka hatramin'ny 95% rh

Ny haavon'ny fiarovana ny lens 1st

IP67

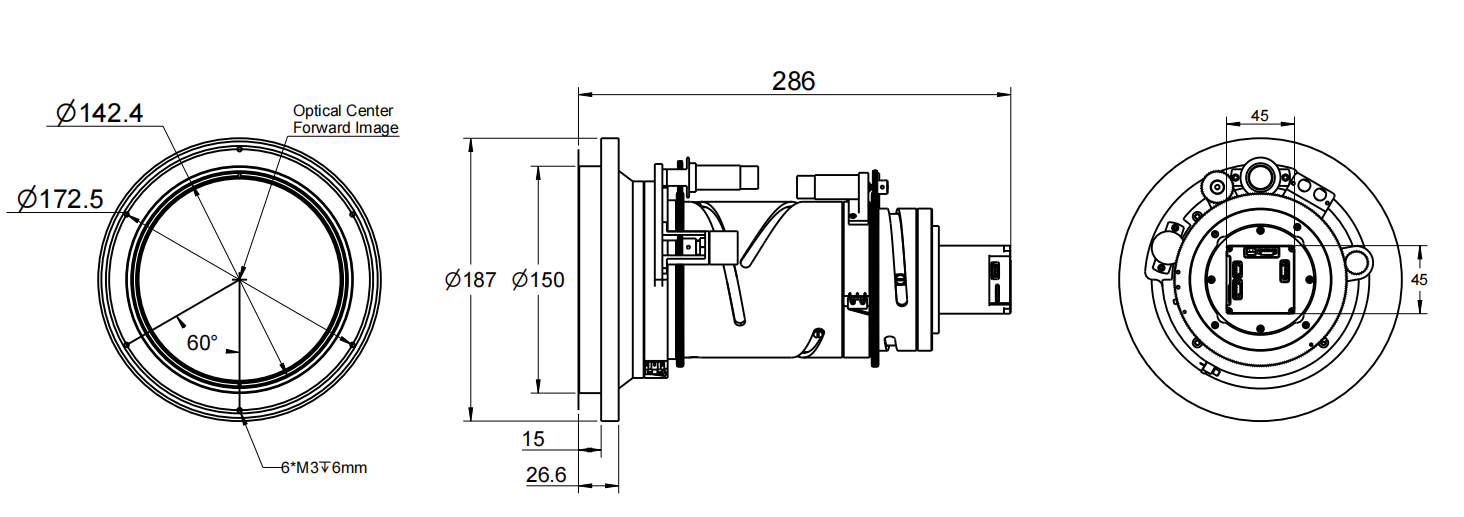

Dimysions (l * w * h)

Φ195 * 321mm

Φ187 * 286 (mm)

Lanja

Eo ho eo. 5kg

Eo ho eo. 4.6kg

family

Detect

REcognize

Identify

Fiara

OLONA

AFO

Fiara

OLONA

AFO

Fiara

OLONA

AFO

30mm

3833m (12575ft)

1250m (4101ft)

217m

(712ft)

958m (3143ft)

313m (1027ft)

54m

(177ft)

479m (1572ft)

156m (512ft)

27m

(89ft)

150mm

19167m (62884ft)

6250m (20505ft)

1083m

(3553ft)

4792m (15722ft)

1563m (5128ft)

271m

(899ft)

2396m (7861ft)

781m (2,562ft)

135m

(443ft)

225mm

28750m (94324ft)

9375m (30758ft)

1625m

(5331ft)

7188m (23583ft)

2344m (7690ft)

406m

(1332ft)

3594m (11791ft)

1172m (3845f)

203m

(666ft)
