12UM 640x512 USB Output Sizotra Thermal Module
|
Laharana modely |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Module thermal |
||||
|
Sary sensor |
Vox tsy voafehy ny fiaramanidina focal |
|||
|
Max. vahaolana |
640 × 512 |
|||
|
Tranomboka |
Azo zahana, 6hz ka hatramin'ny 30hz |
|||
|
Elanelana piksel |
12μm |
|||
|
Valinteny henjana |
8μm hatramin'ny 14μm |
|||
|
Hard |
≤ 40mk (@ 25 ° C), F # = 1.0 |
|||
|
Lens (halavany) |
9.1mm |
15mm |
19mm |
25mm |
|
F isa |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Ifov |
1.3mrad |
0.8mrad |
0.6mrad |
0.48mrad |
|
Fomba fijery (h v) |
48.3 ° ° × 38.6 ° |
29.3 ° ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Elanelana mifantoka |
2m |
5m |
7m |
8m |
|
Fandrefesana ny mari-pana |
||||
|
Sehatra Suhu |
- 20 ° C ~ + 150 ° C & 100 ° C ~ 550 ° C |
|||
|
Fahamarinana ny mari-pana |
Max (± 2 ° C, ± 2%) amin'ny mari-pana ambany 25 ° C sy ny mari-pana amin'ny toerana ambony 0 ° C |
|||
|
Elanelan'ny mari-pana (Miorina amin'ny 0.65 × 0.65m) |
10m (faran'izay lavitra) |
15m (faran'izay lavitra) |
20m (faran'izay lavitra) |
25m (faran'izay lavitra) |
|
Fitsipika thermographi |
Karazan-dry ny mari-pana 3, ny fitsipika 21 (10 isa, faritra 10 ary 1 andalana) |
|||
|
Fampivoarana data |
Data 16bit |
|||
|
Saripika sary |
||||
|
Fanitsiana mifanohitra |
ENY |
|||
|
Fanitsiana hazavana |
ENY |
|||
|
Palettes |
Palitao 15 loko azo zahana, mafana mafana mafana |
|||
|
FFC (fomba fanitsiana) |
Auto, boky, fanitsiana ivelany |
|||
|
DDE |
ENY |
|||
|
General |
||||
|
Tranonkala Hardware |
Usb2.0 FPC |
|||
|
fahefana |
Dc 5v ± 5% |
|||
|
Fisarotam-pahefana |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65w |
|
Vibration & Shock |
Vibration: Vibration sinusoidal, 20 m / s ², 3 - Axis Shock: Half Sine Wave, 30 G / 11 MS, 3 - Axis 6 - fomba |
|||
|

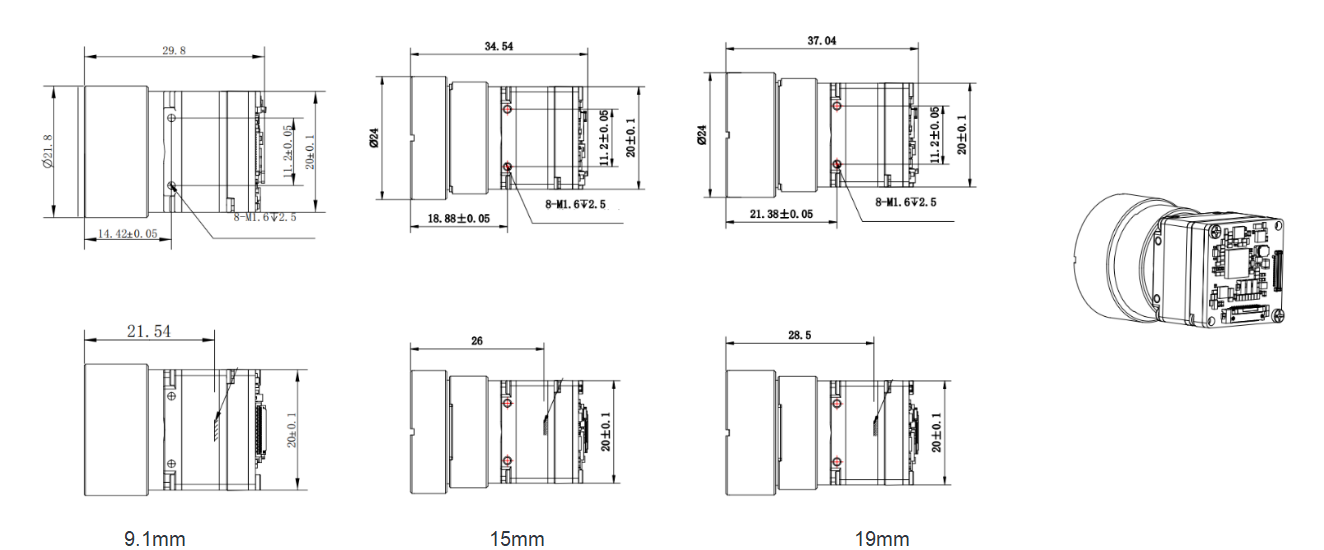

Dimension (MM) |
29.8 * 20 * 20mm |
34.54 * 20 * 20mm |
37.04 * 20 * 20mm |
39.29 * 20 * 20mm |
|
Lanja |
≤22g |
≤28g |
≤32g |
≤33g |
|
Ny mari-pana miasa |
- 40 ° C ~ 70 ° C |
|||
