640x512 Modely fakan-tsary Network Network miaraka amin'ny Lens Lens Voahangy 25mm (19mm, 13mm)
|
MODELY |
SG - Tcm06n2 -25 |
SG - Tcm06n2 -19 |
SG - Tcm06n2 -13 |
|
|
Sensor |
Sary sensor |
Vox Microbolometer Vox |
||
|
vahaolana |
640 × 512 |
|||
|
Tranomboka |
50hz |
|||
|
Pixel Pitch |
12μm |
|||
|
Spectral Range |
8 ~ 14μm |
|||
|
Hard |
≤40MK @ 25 ° C, F # 1.0 |
|||
|
family |
Coating |
DLC |
||
|
Halavany |
25mm |
19mm |
13mm |
|
|
Focus |
BOKY |
BOKY |
BOKY |
|
|
Digital Zoom |
8x |
8x |
8x |
|
|
F Sarobidy |
F1.0 |
F1.0 |
F1.0 |
|
|
Fov |
17.46 ° × 14.04 ° |
22,85 ° × 18.37 ° |
32,91 ° × 26.59 ° |
|
|
Video |
famatrarana |
H.265 / H.264 / H.264H / H.264B / MJPEG |
||
|
Fandraisana audio |
AAC / MP2L2 |
|||
|
Snapshot |
Jpeg |
|||
|
vahaolana |
Renirano Mainty: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480) |
|||
|
Tahan'ny horonan-tsary |
4kbps ~ 40Mbps |
|||
|
Network |
Protocol Network |
IPv4, IPv6, HTTPS, HTCPS, UDP, RTP, RTP, RTP, RTP, FTP, DHCP, Ppoe, DNS, DDN, ICMN, ICMP, SNMP, ICOS, 802.1X, BONJOUR |
||
|
API |
ONVIF, API API, SDK, GB28181 |
|||
|
Security Network |
Fanamarinana ny mpampiasa, ic / sivana IP, HTTPS encryption, ieeE 802.1x |
|||
|
Web browser |
Ie, sisiny, firefox, chrome |
|||
|
Mpikambana |
Hatramin'ny 20 mpampiasa, 2 ambaratonga: Administrator, mpampiasa |
|||
|
Fitahirizana |
Micro SD / SDHC / SDXC Card (hatramin'ny 1TB) Fivarotana sisiny, FTP, NAS |
|||
|
Multicast |
MANAMPY |
|||
|
fahiratan-tsaina |
Fiarovana perimeter |
Fitsangatsanganana, Fitrandrahana Fence Fence, Intrusion |
||
|
Famakafakana fitondran-tena |
Fanesorana, fanesorana zavatra, haingana - Mifindra, mifindra, fitetezana vahoaka, fanararaotana, fanararaotana |
|||
|
ZAVA-NITRANGA |
Fikarohana Motion, fanodinana horonantsary, fanovana sary, fitetezana audio, tapaka ny tamba-jotra, IP fifandirana, fidirana tsy ara-dalàna, fitehirizana tsy ara-dalàna |
|||
|
Fikarohana afo |
MANAMPY |
|||
|
interface tsara |
Eternet |
Open book 01.svg Bika matoanteny |
||
|
Fanairana ao / mivoaka |
1/1 |
|||
|
Audio in / out |
1/1 |
|||
|
Mifehy ny interface tsara |
1x ttl 3.3v (visca protocol), 1x rs485 (pelco protocol) (TTL 3.3V) |
|||
|
Famokarana horonantsary |
Network sy CVBS |
|||
|
Loko Pseudo |
Mafana mafana, mafana mafana, fusion, vy mena, sns 20 safidy |
|||
|
FFC Mode |
Auto / Manual |
|||
|
Fametrahana sary |
Famirapiratra, mifanohitra, maranitra ary fihenan'ny tabataba ara-nofo |
|||
|
OSD |
MANAMPY |
|||
|
Atsimbadiho |
MANAMPY |
|||
|
Fitaratra |
MANAMPY |
|||
|
Herin'aratra |
DC 12V, 1a |
|||
|
Fisarotam-pahefana |
≤2.5w |
|||
|
Toe-javatra miasa |
- 30 ° C ~ + 60 ° C / 20% hatramin'ny 80% rh |
|||
|
Toerana fitahirizana |
- 40 ° C ~ + 70 ° C / 20% ka hatramin'ny 95% rh |
|||
|
Ny haavon'ny fiarovana ny lens 1st |
IP67 |
|||
|

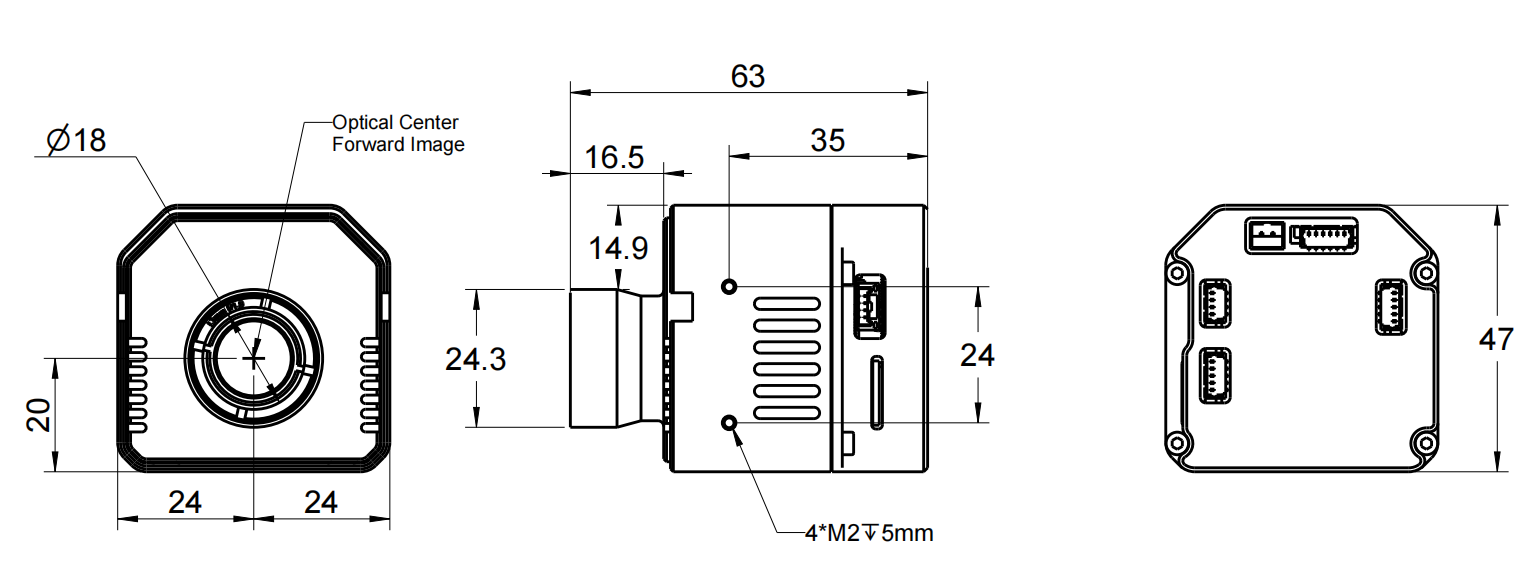

Dimysions (l * w * h) |
75.3 * 48 * 47mm |
69.3 * 48 * 47mm |
63 * 48 * 47mm |
|
|
Lanja |
Eo ho eo. 200g |
Eo ho eo. 177g |
Eo ho eo. 156g |
|
Dri elanelana
Tanjona: Ny haben'ny olombelona dia 1.8m × 0.5m (habe lehibe ny 0.75m), ny haben'ny fiara dia 1.4m × 4.0m (ny haben'ny fitsikerana dia 2,3m); Ny haben'ny afo dia 0.13m ×.13m (habe kritika ny 0.13m).
Ny fisavana kendrena, ny fanekena ary ny halaviran'ny famantarana dia kajy araka ny fitsipiky ny Johnson.
Ny halaviran-davitra azo ampiharina, ny fanekena sy ny fampahafantarana dia toy izao manaraka izao:
|
family |
Detect |
REcognize | Identify | |||||||
|
Fiara |
OLONA |
AFO |
Fiara |
OLONA |
AFO |
Fiara |
OLONA |
AFO |
||
|
13mm |
1661m (5449ft) |
542m (1778ft) |
94m (308ft) |
415m (1362ft) |
135m (443ft) |
23m (75ft) |
208m (682ft) |
68m (223ft) |
12M (39ft) |
|
|
19mm |
2428m (7966ft) |
792m (2598ft) |
137m (499ft) |
607m (1991ft) |
198m (650ft) |
34m (112ft) |
303m (994ft) |
99m (325ft) |
17m (56ft) |
|
|
25mm |
3194m (10479ft) |
1042m (3419ft) |
181m (594ft) |
799m (2621ft) |
260m (853ft) |
45m (148ft) |
399m (1309ft) |
130m (427ft) |
23m (75ft) |
|
