1280x1024 Formal Formal Network Module miaraka amin'ny lelan-tsorakazo 30 ~ 180mm (30 ~ 120mm)
|
MODELY |
SG - Tcm06n2 -M30180 |
SG - Tcm06n2 -M30120 |
|
|
Sensor |
Sary sensor |
Vox Microbolometer Vox |
|
|
vahaolana |
1280 1024 |
||
|
Tranomboka |
50hz |
||
|
Pixel Pitch |
12μm |
||
|
Spectral Range |
8 ~ 14μm |
||
|
Hard |
≤35mk @ 25 ° C, F # 1.0 |
||
|
family |
Coating |
DLC |
|
|
Halavany |
30 ~ 180mm |
30 ~ 120mm |
|
|
Karazana lens |
maotera |
maotera |
|
|
Optical zoom |
6x |
4x |
|
|
Digital Zoom |
8x |
8x |
|
|
F Sarobidy |
F1.0 ~ f1.4 |
F1.0 ~ f1.4 |
|
|
Fov |
28:302 ° × 23.15 ° ~ 4.89 ° × 3.91 ° |
28:302 ° × 23.15 ° ~ 7.32 ° × 5.86 ° |
|
|
Video |
famatrarana |
H.265 / H.264 / H.264H / H.264B / MJPEG |
|
|
Fandraisana audio |
AAC / MP2L2 |
||
|
Snapshot |
Jpeg |
||
|
vahaolana |
Renirano Mainty: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480) |
||
|
Tahan'ny horonan-tsary |
4kbps ~ 40Mbps |
||
|
Network |
Protocol Network |
IPv4, IPv6, HTTPS, HTCPS, UDP, RTP, RTP, RTP, RTP, FTP, DHCP, Ppoe, DNS, DDN, ICMN, ICMP, SNMP, ICOS, 802.1X, BONJOUR |
|
|
API |
ONVIF, API API, SDK, GB28181 |
||
|
Security Network |
Fanamarinana ny mpampiasa, ic / sivana IP, HTTPS encryption, ieeE 802.1x |
||
|
Web browser |
Ie, sisiny, firefox, chrome |
||
|
Mpikambana |
Hatramin'ny 20 mpampiasa, 2 ambaratonga: Administrator, mpampiasa |
||
|
Fitahirizana |
Micro SD / SDHC / SDXC Card (hatramin'ny 1TB) Fivarotana sisiny, FTP, NAS |
||
|
Multicast |
MANAMPY |
||
|
fahiratan-tsaina |
Fiarovana perimeter |
Fitsangatsanganana, Fitrandrahana Fence Fence, Intrusion |
|
|
Famakafakana fitondran-tena |
Fanesorana, fanesorana zavatra, haingana - Mifindra, mifindra, fitetezana vahoaka, fanararaotana, fanararaotana |
||
|
ZAVA-NITRANGA |
Fikarohana Motion, fanodinana horonantsary, fanovana sary, fitetezana audio, tapaka ny tamba-jotra, IP fifandirana, fidirana tsy ara-dalàna, fitehirizana tsy ara-dalàna |
||
|
Fikarohana afo |
MANAMPY |
||
|
interface tsara |
Eternet |
Open book 01.svg Bika matoanteny |
|
|
Fanairana ao / mivoaka |
1/1 |
||
|
Audio in / out |
1/1 |
||
|
Mifehy ny interface tsara |
1x ttl 3.3v (visca protocol), 1x rs485 (pelco protocol) (TTL 3.3V) |
||
|
Famokarana horonantsary |
Network |
||
|
Loko Pseudo |
Mafana mafana, mafana mafana, fusion, vy mena, sns 20 safidy |
||
|
Modely mifantoka |
Auto / Manual / Iray Push AF |
||
|
FFC Mode |
Auto / Manual |
||
|
Fametrahana sary |
Famirapiratra, mifanohitra, maranitra ary fihenan'ny tabataba ara-nofo |
||
|
EIS |
MANAMPY |
||
|
OSD |
MANAMPY |
||
|
Atsimbadiho |
MANAMPY |
||
|
Fitaratra |
MANAMPY |
||
|
Herin'aratra |
DC 12V, 1a |
||
|
Ny fanjifana herinaratra mahazatra |
3.8w |
||
|
Ny fanjifana herinaratra peak |
7.3w |
7.11 |
|
|
Toe-javatra miasa |
- 30 ° C ~ + 60 ° C / 20% hatramin'ny 80% rh |
||
|
Toerana fitahirizana |
- 40 ° C ~ + 70 ° C / 20% ka hatramin'ny 95% rh |
||
|
Ny haavon'ny fiarovana ny lens 1st |
IP67 |
||
|

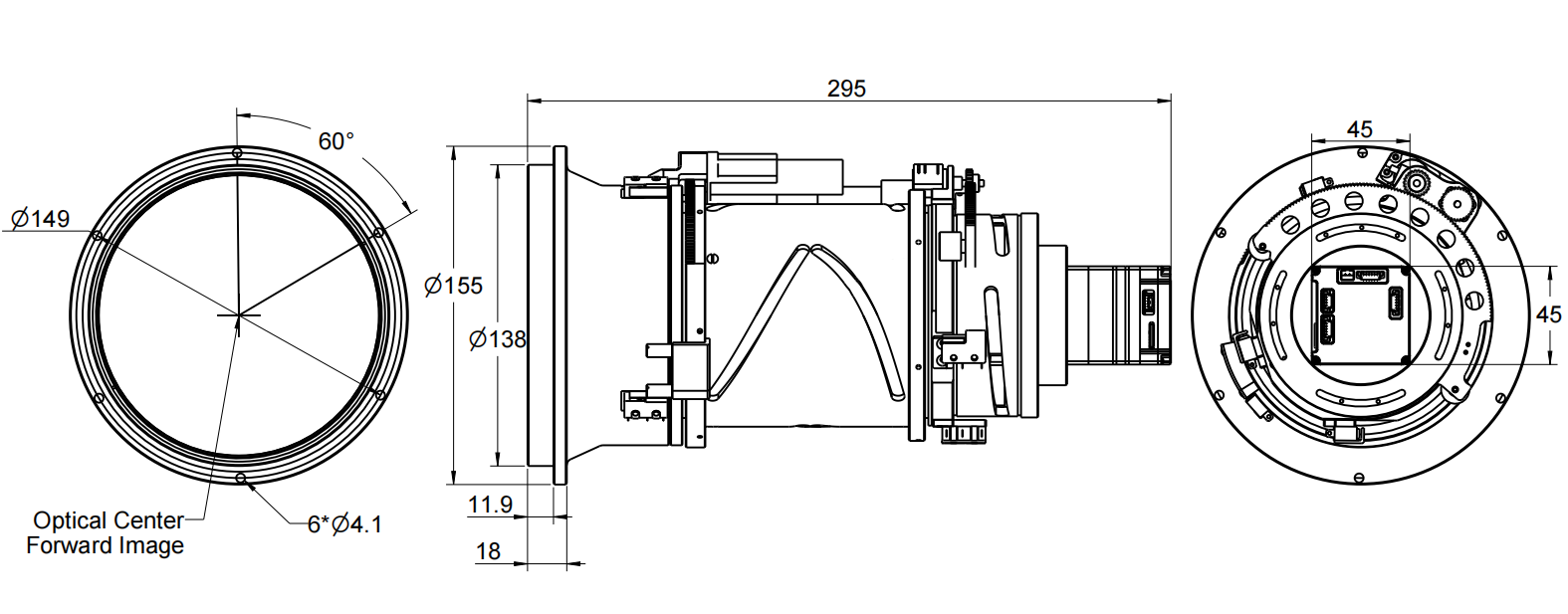

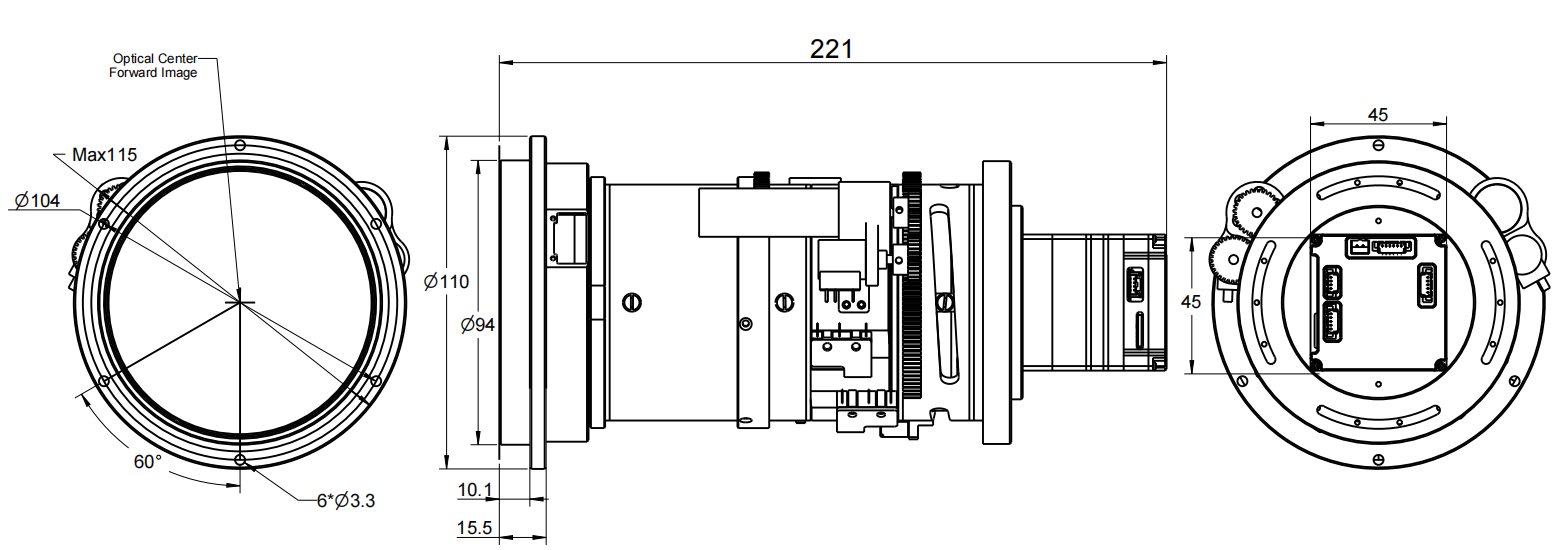

Dimysions (l * w * h) |
Φ155 * 295mm |
Φ110 * 221mm (flange) Φ120 * 221mm (max. Projection) |
|
|
Lanja |
Eo ho eo. 3.2kg (anisan'izany ny cap lens) |
Eo ho eo. 1.69kg (anisan'izany ny satroka lens) |
|
