640x512 Ai ISP mifototra amin'ny tamba-jotra sy Mipi Oual Output Camera Module
|
MODELY |
SG - SWZ06NMI2-7200 |
|
|
Sensor |
Sary sensor |
1/4 "Sony Ingaas Shutter Sensor (IMX991) |
|
Piksel mahomby |
Eo ho eo. 0.34Mp |
|
|
Ny haben'ny piksel |
5μm |
|
|
Spectral Range |
400 ~ 1700nm |
|
|
family |
Lens wavelength |
1000 ~ 1700nm |
|
ICR |
Manohana ny fomba 2: Bandy malalaka: 1000 ~ 1700nm Bandy tery: 1450 ~ 1700nm |
|
|
Halavany |
7.1mm ~ 200mm, 28x optical zoom |
|
|
Karazana lens |
Dingana mpamily zoom len |
|
|
nisara- |
F1.69 ~ f4.84 |
|
|
Fieritreretana |
H: 25,40 ° ~ 0.92 °, V: 20.44 ° ~ 0.73 ° °, D: 31.20 ° ~ 1.17 ° |
|
|
Manakatona ny halaviran'ny fifantohana |
1m ~ 5m (sakany ~ tele) |
|
|
Speed Speed |
<4s (optical midadasika ~ tele) |
|
|
Video |
famatrarana |
H.265 / H.264 / H.264H / H.264.B / MJPEG |
|
vahaolana |
Fitsangatsanganana lehibe: 50 / 60fps @ 1280 × 1024, 50 / 60fps @ 704 × 480 Sub renirano: 50 / 60fps @ 640 × 512, 50 / 60fps @ 352 × 240 |
|
|
Tahan'ny horonan-tsary |
32kbps ~ 16Mbps |
|
|
teny |
AAC / MP2L2 |
|
|
Mipi |
25/30/30 / 60FPS @ 640 × 512 |
|
|
Network |
Protocol Network |
IPv4, IPv6, HTTPS, HTCPS, UDP, RTP, RTP, RTP, RTP, FTP, DHCP, Ppoe, DNS, DDN, ICMN, ICMP, SNMP, ICOS, 802.1X, BONJOUR |
|
API |
Onvif (profil s, profil s, profile g, profile t), http api, sdk, gb28181 |
|
|
Mpikambana |
Hatramin'ny 20 mpampiasa, 2 ambaratonga: Administrator, mpampiasa |
|
|
Fitahirizana |
MicroSD / SDHC / SDXC Card (hatramin'ny 1TB) Fivarotana sisiny, FTP, NAS |
|
|
Multicast |
MANAMPY |
|
|
fahiratan-tsaina |
Hetsika ara-dalàna |
Motion Detection, Fikarohana Audio, IP Addri-draharaham-pifandraisana, fidirana tsy ara-dalàna, fitahirizana anomaly, fanakanana horonantsary, fanovana sehatra, fiovan'ny sehatra, fanilihana ny tamba-jotra |
|
Ny fiasa IVS |
Fitsangatsanganana, fiampitana fefy, fidirana, tsy fanelingelenana, haingam-pandeha, haingana - mifindra, fitetezana fijanonana, vahoaka manangona vinavina, tsy hita, zavatra tsy hita, zavatra tsy hita, zavatra tsy hita. |
|
|
Fanavaozana firmware |
Afaka manavao ny firmware amin'ny alàlan'ny seranan-tsambo |
|
|
Hetsika ankapobeny |
Motion, Tamper, karatra SD, Network |
|
|
Ivs |
Fitsangatsanganana, fiampitana fefy, fidirana, tsy fanelingelenana, haingam-pandeha, haingana - mifindra, fitetezana fijanonana, vahoaka manangona vinavina, tsy hita, zavatra tsy hita, zavatra tsy hita, zavatra tsy hita. |
|
|
Ny fampihenana ny tabataba |
2d / 3d |
|
|
Modely fampivoarana |
Manual, Auto, laharam-pahamehana, laharam-pahamehana, ho laharam-pahamehana |
|
|
Fanonerana ny fanitarana |
MANAMPY |
|
|
Speed Speed |
1/3 ~ 1 / 30000s |
|
|
Modely mifantoka |
Auto / Manual / Semi Auto / One Push AF |
|
|
Electronic Defog |
MANAMPY |
|
|
Ny fihenan'ny setroka mafana |
MANAMPY |
|
|
Atsimbadiho |
MANAMPY |
|
|
EIS |
MANAMPY |
|
|
Digital Zoom |
16x |
|
|
Eternet |
Open book 01.svg Bika matoanteny |
|
|
Fifehezana ivelany |
TTL |
|
|
interface tsara |
4mpan'ny seranan-tsambo Ethernet, Serial & herinaratra 6pin & herinaratra, Port Audio 5pin. 30pin mipi Port |
|
|
Protocol serasera |
Sony visca, pelco d / p |
|
|
Toe-javatra miasa |
- 30 ~ + 60 ° C / 20% ~ 80% rh |
|
|
Toerana fitahirizana |
- 40 ~ + 70 ° C / 20% ~ 95% rh |
|
|
Herin'aratra |
DC 12V |
|
|
Ny fanjifana herinaratra (TBD) |
Herin'ny Static: 4.5w, herin'ny fanatanjahantena: 5.5w |
|
|

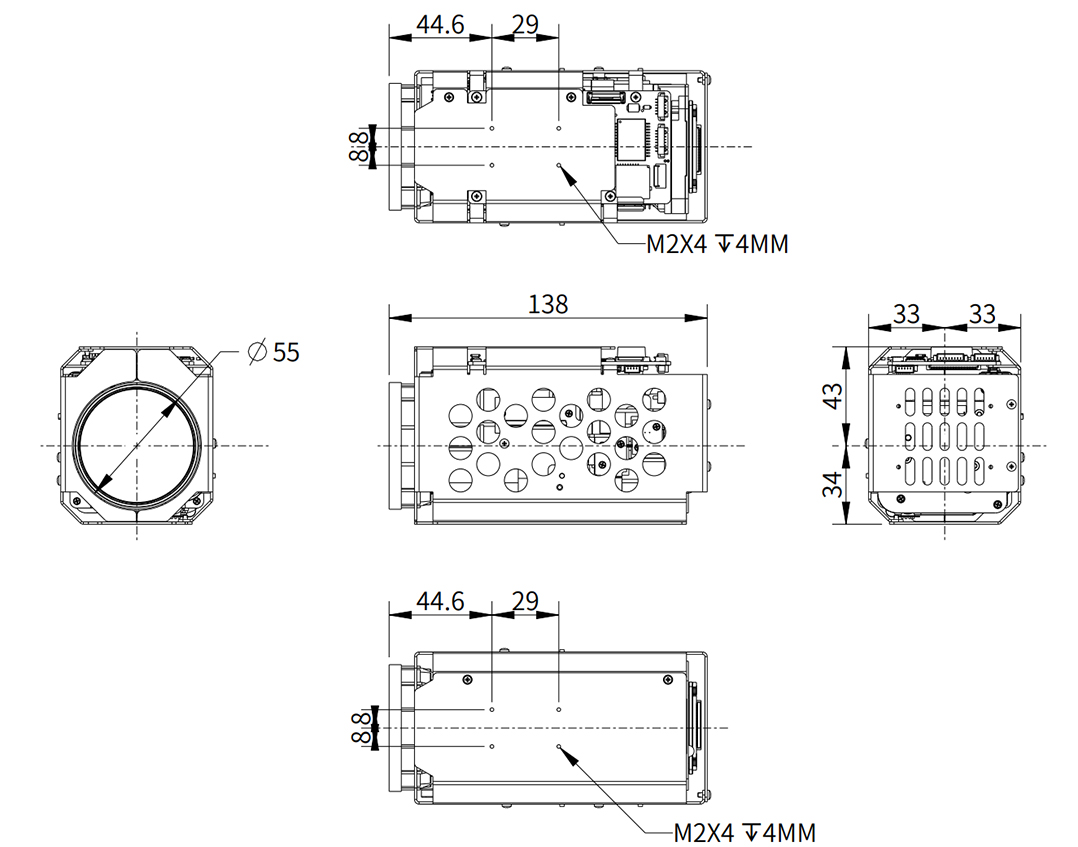

Dimysions (l * w * h) |
Eo ho eo. 138mm * 66mm * 77mm |
|
|
Lanja |
618g |
|
